Crushers
Offering Jaw Crushers to Crush Primary Rock, Impact Crushers for Primary, Secondary & Tertiary applications, and Cone Crushers to complete the range and provide customers with a complete solution for the Mining, Aggregate, and Recycling sectors.
Cones
Impactors
Jaws
CONE CRUSHERS
McCloskey’s mobile Cone Crushers have been designed to deliver superior performance whilst also achieving higher capacity, better product quality, optimum versatility, and improved fuel efficiency.

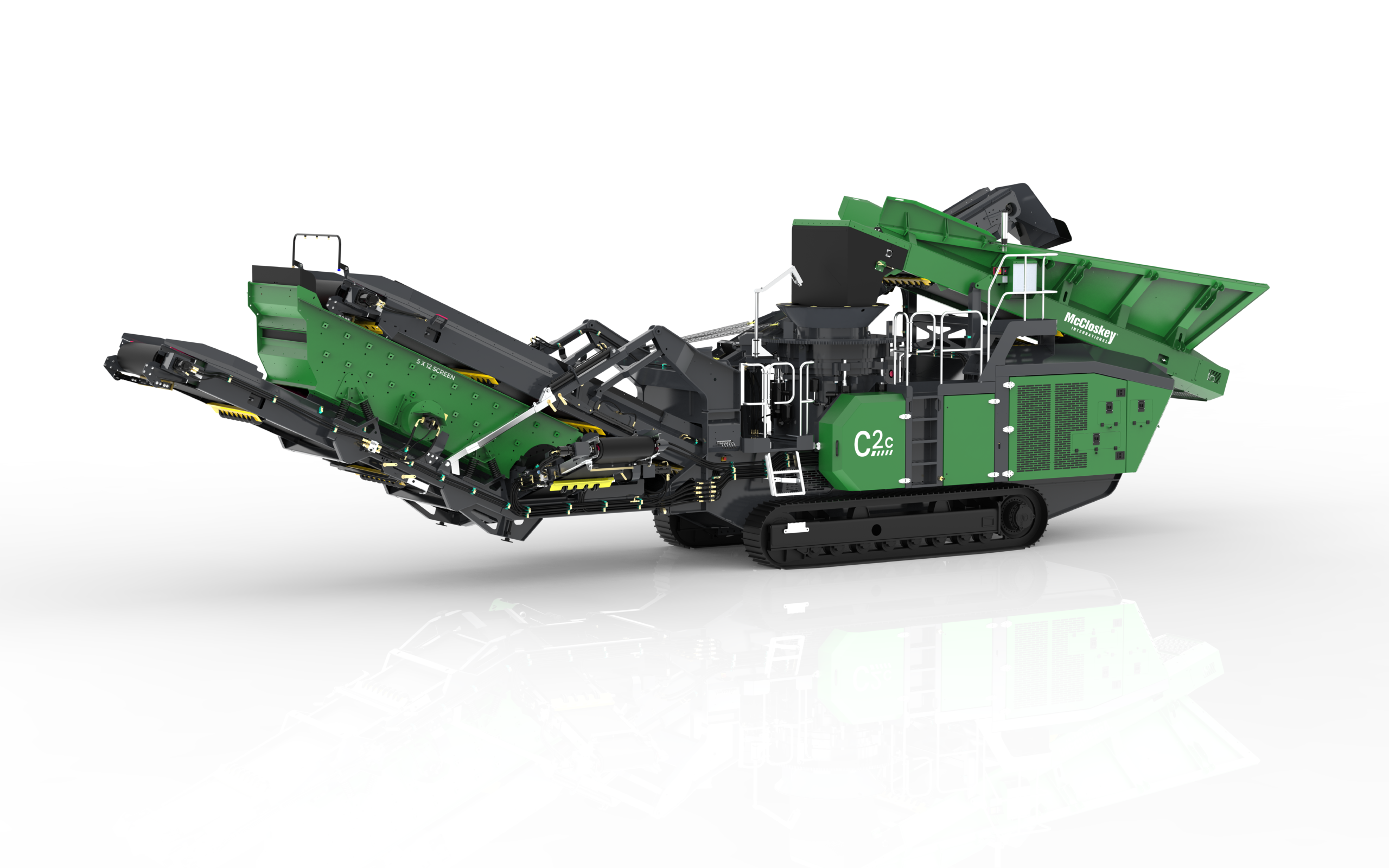

C2C
- MC200 Cone
- Compact chassis for ease of portability and maintenance
- 280Kw (375 Hp) CAT or Volvo engines
C3
- MC300 Cone
- I-beam plate fabricated chassis
- 328kW (440Hp) – 380kW (510Hp)
CAT or Volvo engines - Fast setup time
C3R
- MC300 Cone
- Radial return conveyor
- Integrated hopper with folding rear door.
- 380kW (510Hp) engine
C4
- MC400 Cone
- Large gap between crusher discharge and main conveyor feedboot
- 456 Kw (612HP) Volvo engine.
- Fast setup time
IMPACT CRUSHERS
The Recirculating Impact Crushers offer versatility, allowing operators to produce a crushed and screened final product with one machine. A swing-out radial return conveyor can complete 90 degrees while the machine is running for additional stockpiling.
I3C
- Formerly I34
- 900mm (35.4″) diameter x 820mm (32.3″) wide Impactor
- Apron adjustment to suit Secondary / Primary crushing.
- 188kW (252Hp) Volvo engine
I3CR
- Formerly I34R
- 900mm (35.4″) diameter x 820mm (32.3″) wide Impactor
- Swing out radial return conveyor.
- Single Deck recirculation screen.
I4C
- 1050mm (41.3″) diameter x 1125mm (44.3″) wide Impactor
- 375Hp (280kW) CAT engine.
- Integrated hydraulic folding stockpiling conveyors.
I4CR
- 1050mm (41.3″) diameter x 1125mm (44.3″) wide Impactor
- Swing out radial return conveyor.
- Single Deck recirculation screen.
- Open chassis
I44
- 1050mm (41.3″) diameter x 1125mm (44.3″) wide Impactor
- Vibrating feeder under crusher discharge.
- 268kW (360Hp) or 261kW (350Hp) engines
- I-beam plate fabricated chassis.
I44R
- 1050mm (41.3″) diameter x 1125mm (44.3″) wide Impactor
- Swing out radial return conveyor
- 360Hp Volvo D11 T4 Final or 350Hp CAT C9 Tier 3
- Double Deck recirculation screen
I54
- 1200mm (48″) diameter x 1350mm (53″) wide Impactor
- Vibrating feeder under crusher discharge.
- 510Hp (380kW) Volvo – 400kW (536Hp) CAT engines
- Fast setup time
I54R
- 1200mm (48″) diameter x 1350mm (53″) wide Impactor
- Swing out radial return conveyor
- Vibrating feeder under crusher discharge.
- 1.5 or 2 deck recirculating screenbox.
JAW CRUSHERS
With its class-leading throughput and capacity, the Jaw Crusher range brings more power and versatility together to deliver high production.
J3C
- Formerly J35
- 890mm (35″) wide x 500mm (20″) Jaw Crusher
- Reverse crushing
- 218Hp (162kW) Volvo D5 T3 or T4 engine
- Open chassis design
J3CR
- Formerly J35R
- 890mm (35″) wide x 500mm (20″) Jaw Crusher
- Swing out radial return conveyor.
- Double Deck recirculation screen
- Fast setup time
J40
- 1016mm (40”) x 610mm (24”) single toggle jaw.
- Hydraulic direct drive grizzly feeder
- High capacity hydraulic folding hopper
- 900mm (36″) main conveyor

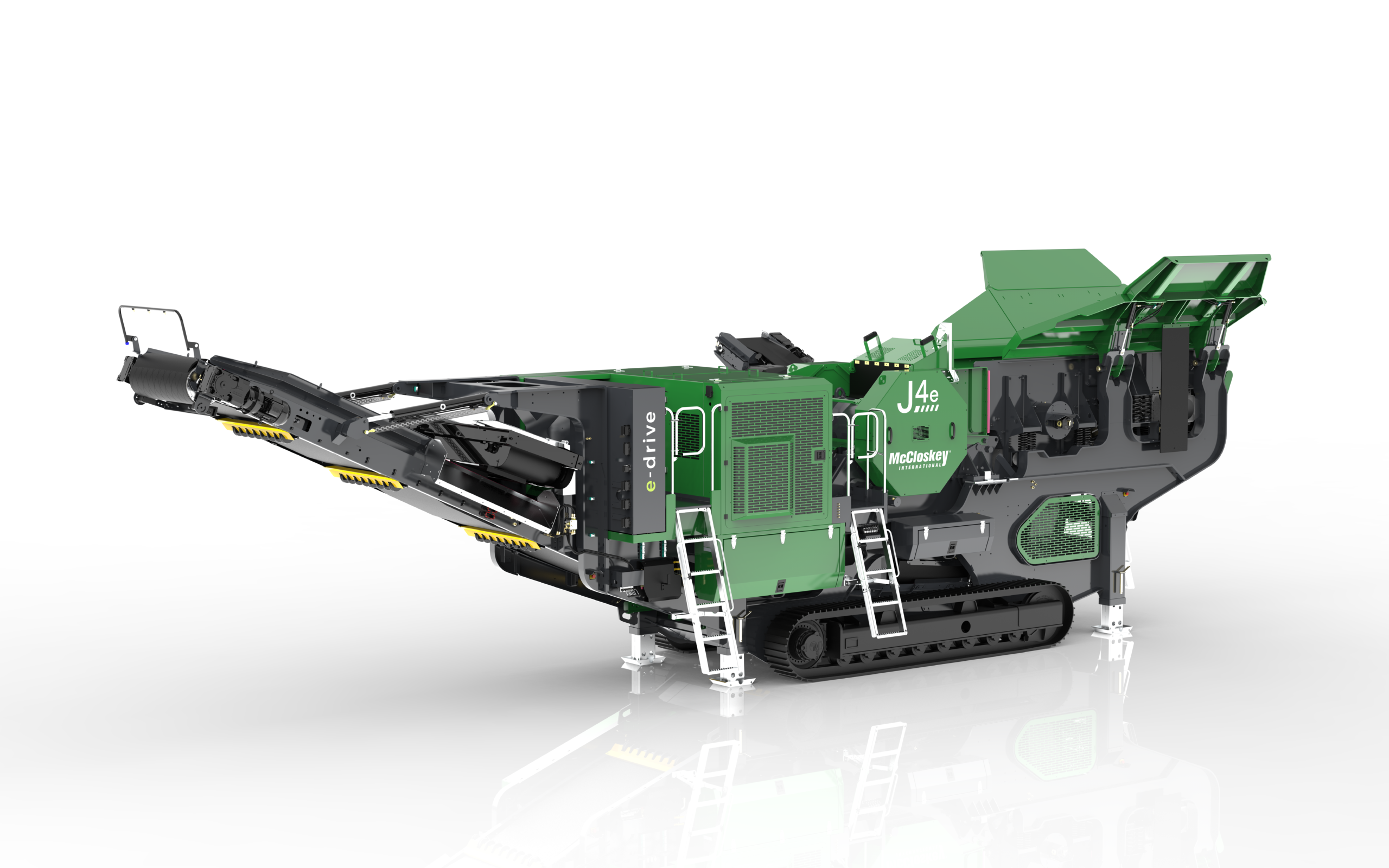

J4
- 1060mm (42″) wide x 700mm (28″) single toggle jaw.
- 1.5 or 2 deck recirculating screenbox.
- Quick release jaw for transport.
- Fast setup time
J4R
- 1060mm (42″) wide x 700mm (28″) single toggle jaw.
- 1.5 or 2 deck recirculating screenbox.
- Open chassis design for ease of maintenance.
J45
- 1140mm (45”) x 688mm (27”) single toggle jaw
- High-capacity folding hopper
- 261kW (350Hp) C9 / C9.3 Cat engine.
- I-beam plate fabricated chassis construction.
J45R
- 1140mm (45”) x 688mm (27”) single toggle jaw
- Track or Track c\w Wheel bogie.
- 261kW (350Hp) C9 / C9.3 Cat engine.
- Integrated hydraulic folding hopper.
J50
- 1270mm (50”) x 735mm (29”) single toggle jaw
- Large gap between crusher discharge and main conveyor feedboot.
- 261kW (350Hp) – 269kW (361Hp) engine options

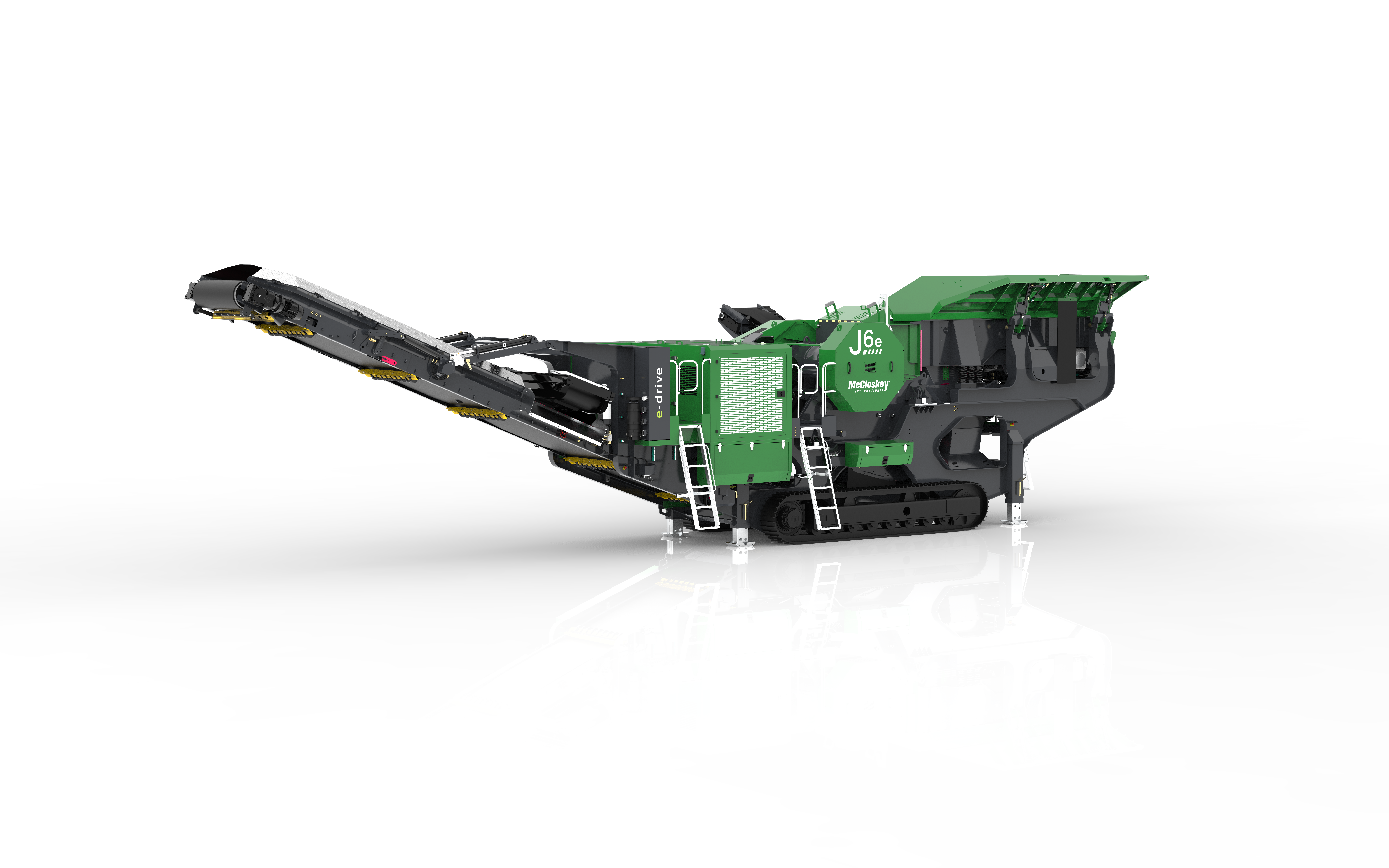

J6
- 1200mm (48″) wide x 864mm (34″) single toggle jaw.
- Deeper jaw chamber for hard rock applications
- Choice of CAT or Volvo LRC, Tier 4/Stage 5 engines.
