C3R Cone Crusher
Features
Powerful MC300 Cone
380kW (510Hp) D13 Volvo Stage V engine
Integrated hopper with folding rear door
I-beam plate fabricated chassis construction
Large gap between crusher discharge and main conveyor feedboot
Open chassis design for ease of maintenance
Fast setup time
CONE CRUSHER RANGE CATALOG
Standard Features are far from standard on the new McCloskey® compact and portable C3R cone crusher, including unrivalled ground level access, full size MC300 cone, powerful engine, efficient conveyor design, and continuous load and material monitoring.
McCloskey mobile cone crushers have been designed to deliver superior performance while also achieving high capacity, better product quality, optimum versatility and improved fuel efficiency.

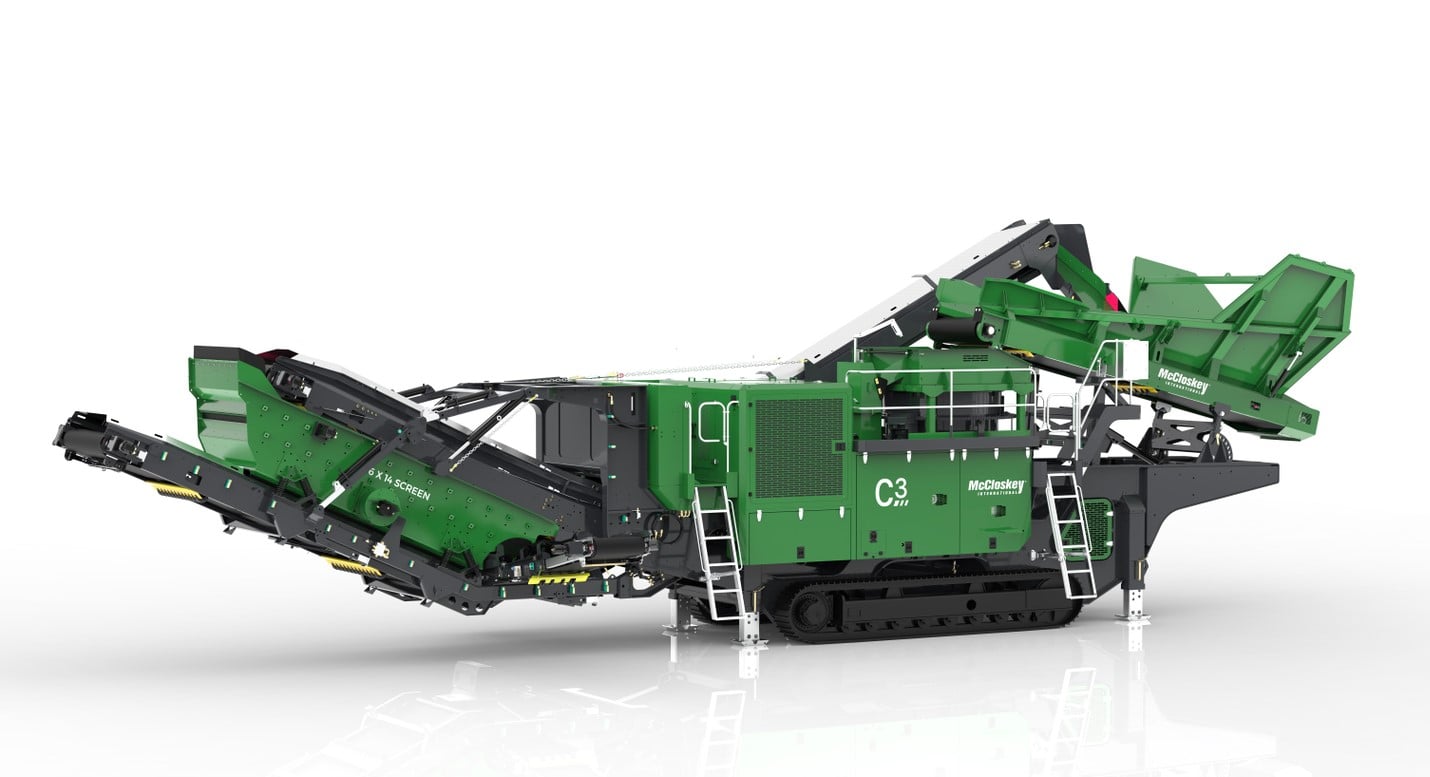

C3R Cone Crusher
The C3R delivers high production from material feed to end product stockpile due to its innovative material flow features. As the material enters the cone chamber, features like a long stroke and high speed contribute to the high productivity, while ensuring the highest quality of end product with variable speed.
C3R Tech Specs
| Engine | 510Hp (380kW) |
| Cone | MC300 |
| Feed Opening | 1050mm (42”) |
| Feeder Belt Width | 1200mm (48”) |
| Hopper Volume | 5m³ (6.5yd³) levelled off, 6.2m³ (8.1yd³) heaped |
| Crusher Drive | Direct Drive |
| Crushing Chamber Max. Feed Opening | 211mm (8.31”) |
| Stockpile Height | 3887mm (12′ – 9″) |
| Main Conveyor Belt Width | 1200mm (48″) |
Transport
| Transport Height | 3.6m (11′ – 9.7″) |
| Transport Length | 20.65m (67′ – 9″) |
| Transport Width | 3.83m (12′ – 7”) |
| Weight | 59,200 Kgs (130,510 lb) |
Options
Hopper Extensions
Water Pump and dust suppression system
Various cone liner options
Work Lights & Belt Scale
